OPTICAL COMMUNICATION TESTER - PART 2

OPTICAL COMMUNICATION TESTER - PART 1

Contact us for more details.

DATA TRANSMISSION TESTER - SUPPLIED BY SOUL COMMUNICATION SDN BHD

To all readers our there, our company has been appointed as single and sole distributor for brand name of AITELONG, the well-known manufacturer of test gears in China. All prices we offer are really attractive since you will get it directly from us. No middleman commission. Call / email for any inquiry

UNIFI INSTALLATION AT KLANG

Our team has completed one Unifi fiber termination and splicing job at Klang early this month. It comprised of termination at FDC, overhead pole DP and underground joints. We share our experience in this post to all readers. Keep visit our blog!

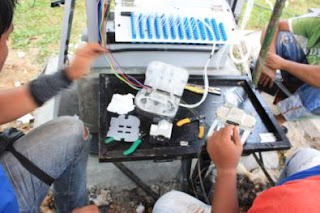

Preparing FDC with pigtails and fiber

Separate the splicing tray for easy splicing

Stripping the pigtails 0.9mm

Ready to splice with fiber 250 micron

Splicing with handy Fitel machine

Cleaving the fiber using proper holder

Proper coiling inside tray eliminating macro bending

Example of fiber coiling inside FDC tray

Inspect any pigtails / tube bending

Splicing for underground jointing

Heating the heatshrink with gas

Coiling fiber inside overhead pole DP

\

Termination at overhead pole DP completed

Rehanging DP with proper coiling of 60cm diameter

Job finish!!

FITEL S178A - HAND HELD CORE ALIGNMENT FUSION SPLICER

Our latest promotion for new set Fitel S178A Hand-Held Core Alignment Fusion Splicer from Furukawa is now on the list. This new model is the latest from Fitel and it is totally drop resistance, water resistance and dust resistance. Please refer to the video for details

The package from us really attractive. It comes with two (2) hard carrying cases which consist at least of the following items:

1. Splicer S178A

2. Cleaver S325

3. Battery Pack S943

4. Battery Charger S958B

5. Extra Spare Electrodes - S969

6. Cleaning Brush - VGC-01

9. Electrode Sharpener D5111

10. Hard Carrying Case  HCC-01

And don't forget, this package is comes with additional hard-carrying case (which the photo not displayed here) and the extra case is for tool splicing kit. All this comes with tremendous cut-cost price of RM31,500.00

Call / Email to 013-4882800 asrul@soulcommunication.com.my

MANHOLE DETECTOR

Locating missing manhole is really a tedious job. Some cases we found the missing manhole 1.2 meter buried by soil. There is also case where manhole was cover by pedestrian's concrete. And most of the cases, the manhole covered by road bitumen / tar.

Our solution from Soul Communication Sdn Bhd provides quick method locating this missing manhole. And this device was fully imported from oversea and we are solely distributor for this device. It guaranteed the product can detect the manhole cover up to 2.5 meter below the ground level. Come and get it directly from us. No middleman price.

We keep stock for our client.

The package comes with standard aluminium casing

Built with LED for tracing manhole at night

Large LCD screen and result will be shown at screen

Detecting missing manhole at TIME cabin

This complete unit inclusive Energizer alkaline batteries is warranty for one (1) year.

Price is RM2500 RM1300 Nett

DEALING WITH MANHOLE THEFT / VANDALISM PART 2

The first method which we posted last time was to seal the manhole neck collar with concrete. In this posting, we highlight on the second method which also implement at manhole Maxis. This method was to fully concrete the whole cover to avoid vandalism of manhole theft. And it seems good result achieved

Before

After

Before

After

Before

After

Before

After

Coming in few weeks, we will release new product into the market, which totally provide solution to manhole theft. This product has been widely distribute worldwide, except Malaysia. So keep visit our blog!!

DEALING WITH MANHOLE THEFT / VANDALISM

Thanks for comment on our previous posting about manhole vandalism. Actually there are three (3) kinds of prevention step that Telco can take initiative. Our team have implement two of it. And awaiting the next approval from our client before we implement the last step.

Below we highlight the first step that we implement for Maxis manhole:

Photo 1 : Everything is gone. Example of vandalism activity

Photo 2 : Replace with the new manhole cover

Photo 3 : Replacing manhole cover completed

Photo 4 : The manhole neck collar and surrounding was fully concreted

And this first step of prevention method so far achieved its target. No second-time vandalism case
